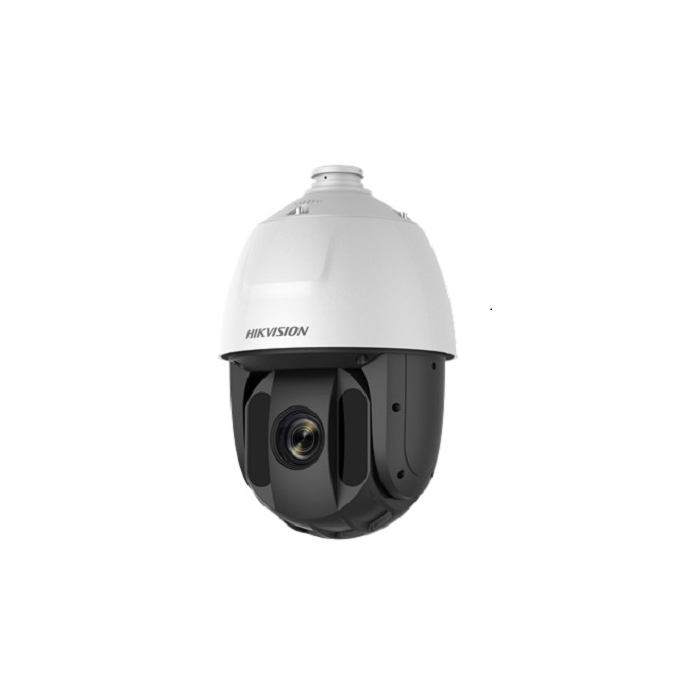

2MP DS-2AE5225TI-A(E) Hikvision Turbo 25x PTZ Camera with 150m IR

The Hikvision DS-2AE5225TI-A(E) is a 2 MP (1080P) Turbo HD PTZ Speed Dome with 25× optical zoom (4.8-120 mm), 150 m Smart IR, IP66 rated, with 5-in-1 hybrid coax output — HD-TVI, AHD, HDCVI and CVBS auto-detect drops into any existing DVR or coax cable run. Coaxitron control over the BNC line removes the need for a separate RS-485 cable on simple installs.

25× optical zoom with 4.8-120 mm motorised lens. 360° endless pan, -15° to 90° tilt with auto-flip, manual speed 0.1°/s – 160°/s and preset speed up to 240°/s — 256 presets, 8 patrols and 4 patterns programmable from any compatible DVR or joystick controller. 150 m Smart IR with intensity adjustment to prevent close-range overexposure. 5-in-1 hybrid coax video (HD-TVI / AHD / HDCVI / CVBS) auto-detects on connection — the camera works with virtually any UK analogue DVR in stock with installers today.

Key Features

• 2 MP (1080P) resolution (1920 x 1080)
• 25× optical zoom — 4.8-120 mm motorised lens
• 360° endless pan, -15° to 90° tilt (auto-flip)
• 256 presets, 8 patrols, 4 patterns; preset speed up to 240°/s
• Coaxitron control over BNC — no separate RS-485 run needed for compatible Hikvision / HiLook DVRs
• 150 m IR range with Smart IR
• 5-in-1 hybrid coax video — HD-TVI / AHD / HDCVI / CVBS auto-detect
• Drops into any existing UK analogue DVR or coax cable run (BNC)
• Digital WDR + 3D-DNR for clean low-light / back-lit scenes
• IP66 weatherproof
• Operating temperature: -40 °C to 65 °C
• Power: 12 VDC / 24 VAC for PTZ models
• CE / UKCA / RoHS approved

Note: Turbo HD PTZ speed domes use coaxial cable for both video and control — pan/tilt/zoom commands ride down the same BNC line via Coaxitron (no separate RS-485 cable required for compatible DVRs). An RS-485 control loop is still wired in for legacy joystick keyboards or third-party DVRs.
