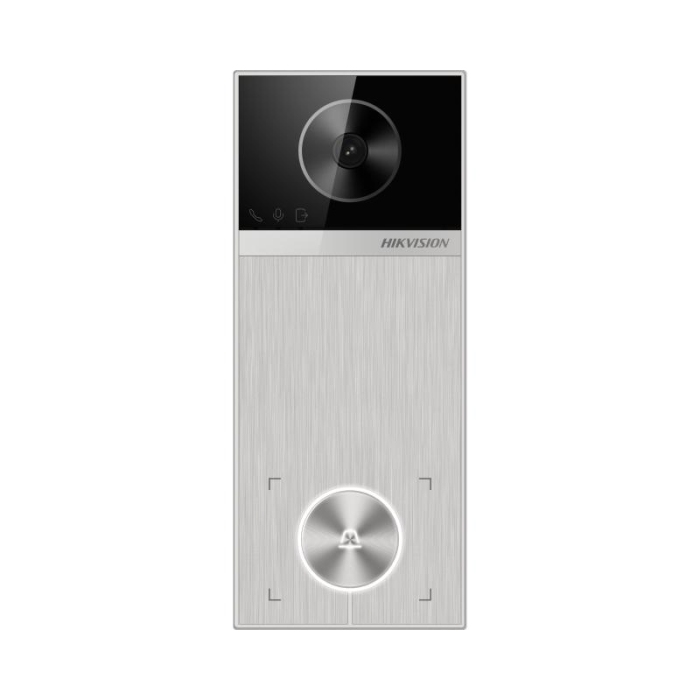

Hikvision DS-KV6114-MWBE1 4MP 150° Metal Door Station, WiFi 6, PoE/12v DC, 2xDoor Lock, Card Reader
In stock
SKU
DS-KV6114-MWBE1
MPN: 305305987EAN: 6936422172404UPC: DS-KV6114-MWBE1
The Hikvision DS-KV6114-MWBE1 is a 4 MP IP Villa Door Station — 4 MP, 150° wide-angle camera, WiFi 6, PoE 802.3af, Mifare card reader, dual lock outputs.
Stand-alone IP villa door station with a die-cast metal vandal-resistant front plate for residential and small commercial installs. 4 MP 150° wide-angle camera with 5 m IR illumination, WiFi 6 + RJ-45 PoE 802.3af for wired or wireless install, Mifare card reader for keyless entry, two independent relay lock outputs for dual-gate control, and an IP65 / IK08 outdoor-rated housing. Pair with a Hikvision DS-KH series indoor station or the Hik-Connect mobile app for residents.
Key Features
- 4 MP 150° wide-angle camera with 5 m IR for after-dark visitors
- WiFi 6 + RJ-45 PoE 802.3af — wired or wireless mount-and-go install
- Mifare card reader
- Two relay lock outputs — control pedestrian gate + vehicle gate from one station
- Metal vandal-resistant body — IK08 impact-rated
- IP65 outdoor-rated housing
- Hik-Connect mobile app — remote answer + live view
WiFi 6 explained: 802.11ax delivers higher throughput, lower latency and improved range over 2.4 GHz / 5 GHz WiFi 5 networks — video stream to the indoor station and mobile app stays stable even under congested router conditions.
Metal vandal-resistant body: die-cast metal front plate and IK08 housing make this station suited to exposed entrances, communal doorways and locations where a polymer body would be vulnerable to attack.
Dual lock outputs: two independent relay outputs control two doors / gates from a single door station — pedestrian gate plus vehicle gate, or main door plus secondary lock, without external relay expansion modules.
Identification: SKU DS-KV6114-MWBE1 · MPN 305305987 · EAN/GTIN-13 6936422172404 · Brand Hikvision
