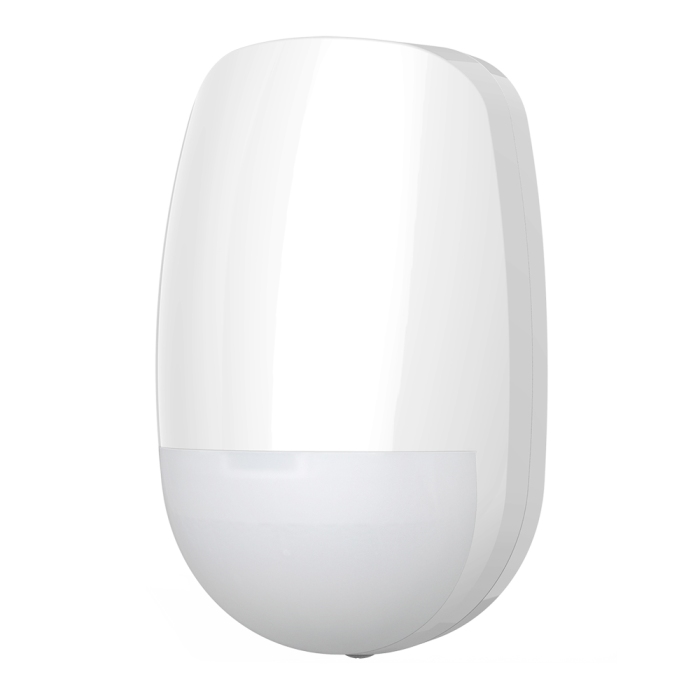

PIR Curtain Detector Hikvision AX PRO DS-PDC15-EG2-WE

The Hikvision AX PRO DS-PDC15-EG2-WE is a wireless intrusion detector — Curtain-beam PIR — 15 m × 6.3° narrow beam protects doors, windows and aisles without flooding the room.

Part of the Hikvision AX PRO two-way wireless range — 868 MHz Tri-X RF with AES-128 encryption, anti-jamming and signal-supervision across the full hub ecosystem. EN 50131 Grade 2 system support, Hik-Connect mobile app, Hik-ProConnect installer cloud and SIA-DC09 / Contact-ID ARC reporting.

Key Features

• Passive Infrared (curtain beam)
• 15 m detection range, 6.3° field of view
• Battery: CR123A x 2, ~5 year life
• Mounting: Wall above entry / window
• IP rating: Indoor
• Tamper protection (front + rear)
• Anti-masking signal-jamming detection
• Two-way 868 MHz Tri-X RF — AES-128 encrypted, 1.6 km free-air range
• Digital temperature compensation
• CE / UKCA / RED approved
