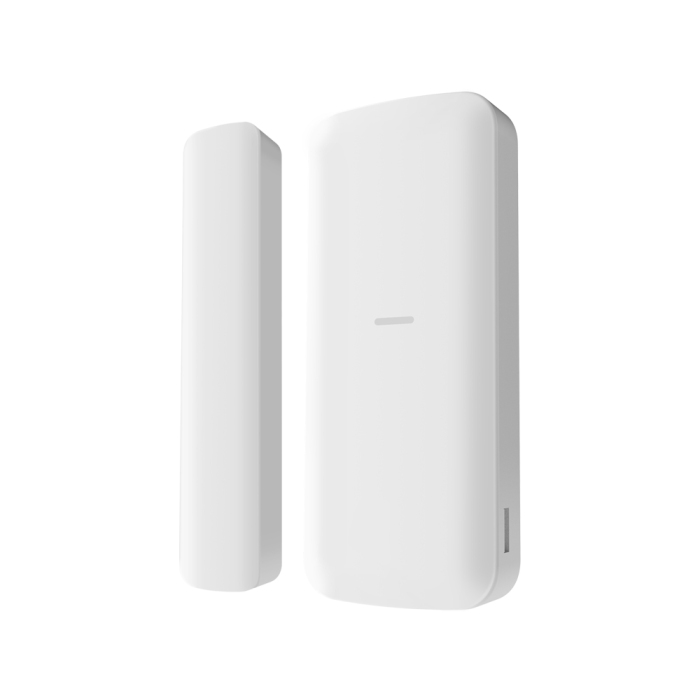

Magnetic Contact SLIM Hikvision AX PRO DS-PDMCS-EG2-WE

The Hikvision AX PRO DS-PDMCS-EG2-WE is a wireless intrusion detector — Slim-profile magnetic contact — fits narrow frames where standard contacts will not.

Part of the Hikvision AX PRO two-way wireless range — 868 MHz Tri-X RF with AES-128 encryption, anti-jamming and signal-supervision across the full hub ecosystem. EN 50131 Grade 2 system support, Hik-Connect mobile app, Hik-ProConnect installer cloud and SIA-DC09 / Contact-ID ARC reporting.

Key Features

• Reed-switch magnetic contact (slim)
• Magnetic gap distance: up to 25 mm
• Battery: CR2032 x 1, ~5 year life
• Mounting: Door / window frame (slim profile)
• IP rating: Indoor
• Tamper protection (front + rear)
• Anti-masking signal-jamming detection
• Two-way 868 MHz Tri-X RF — AES-128 encrypted, 1.6 km free-air range
• Digital temperature compensation
• CE / UKCA / RED approved
