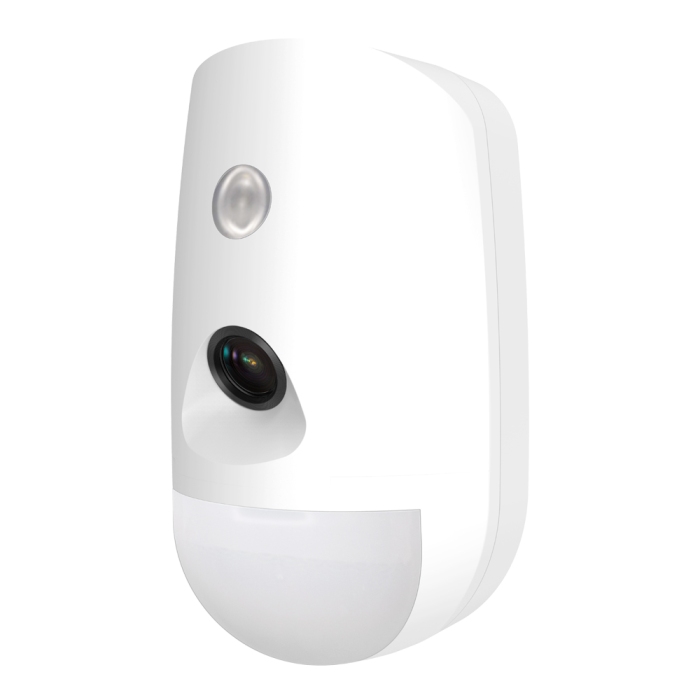

PIR CAM Hikvision AX PRO DS-PDPC12P-EG2-WE

The Hikvision AX PRO DS-PDPC12P-EG2-WE is a wireless intrusion detector — PIR detector with on-trigger camera capture — visual alarm verification reduces false dispatches by ARC.

Part of the Hikvision AX PRO two-way wireless range — 868 MHz Tri-X RF with AES-128 encryption, anti-jamming and signal-supervision across the full hub ecosystem. EN 50131 Grade 2 system support, Hik-Connect mobile app, Hik-ProConnect installer cloud and SIA-DC09 / Contact-ID ARC reporting.

Key Features

• Passive Infrared + Camera (alarm verification)
• 12 m detection range, 85.9° field of view
• Pet immunity up to 30 kg
• Built-in low-light VGA camera — captures image on alarm trigger
• Battery: CR123A x 4, ~3 year life
• Mounting: Wall (1.8 – 2.4 m)
• IP rating: Indoor
• Tamper protection (front + rear)
• Anti-masking signal-jamming detection
• Two-way 868 MHz Tri-X RF — AES-128 encrypted, 1.6 km free-air range
• Digital temperature compensation
• CE / UKCA / RED approved
