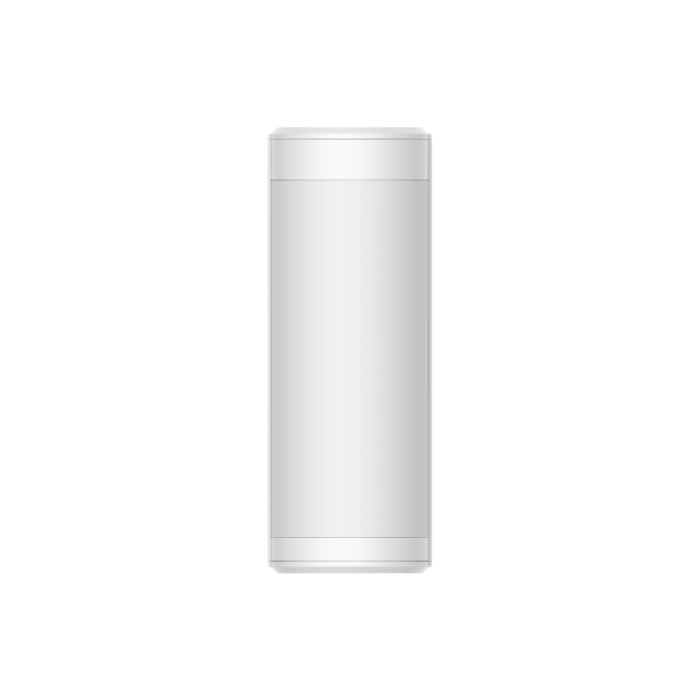

Tri-Tech External Detector Hikvision AX PRO DS-PDTT15AM-LM-WE

The Hikvision AX PRO DS-PDTT15AM-LM-WE is a wireless intrusion detector — Outdoor tri-tech detector — dual-PIR + microwave, anti-mask, IP65 for perimeter and forecourt protection.

Part of the Hikvision AX PRO two-way wireless range — 868 MHz Tri-X RF with AES-128 encryption, anti-jamming and signal-supervision across the full hub ecosystem. EN 50131 Grade 2 system support, Hik-Connect mobile app, Hik-ProConnect installer cloud and SIA-DC09 / Contact-ID ARC reporting.

Key Features

• Dual-PIR + Microwave Tri-Tech (outdoor)
• 15 m detection range, 110° field of view
• Pet immunity up to 30 kg
• Microwave frequency: 24 GHz
• Battery: CR123A x 4, ~3 year life
• Mounting: Wall (0.9 – 1.2 m for outdoor)
• IP rating: IP65 weatherproof
• Tamper protection (front + rear)
• Anti-masking signal-jamming detection
• Two-way 868 MHz Tri-X RF — AES-128 encrypted, 1.6 km free-air range
• Digital temperature compensation
• CE / UKCA / RED approved
