Hub-L 64-Zone WiFi LAN & GPRS Hikvision AX PRO DS-PWA64-L-WE

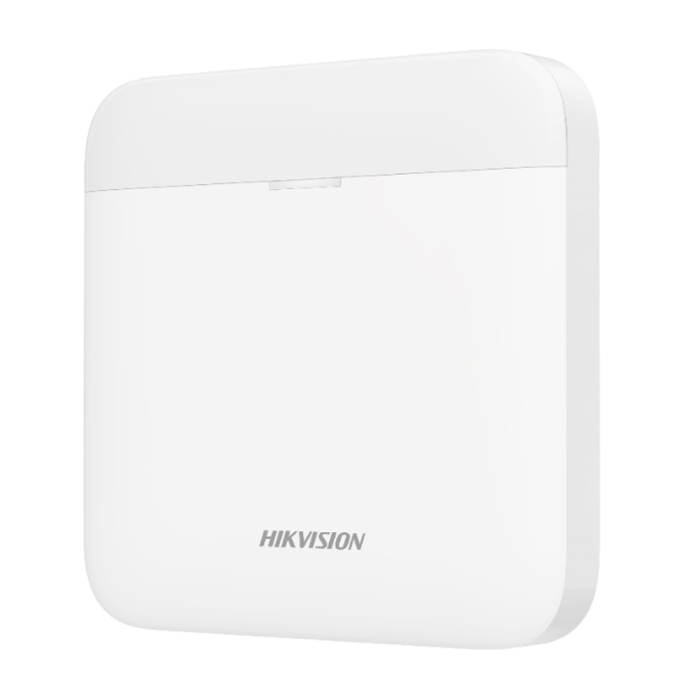

The Hikvision AX PRO DS-PWA64-L-WE is a wireless alarm control hub — Light-version 64-zone two-way wireless hub for small to mid-size residential and commercial installs.

Part of the Hikvision AX PRO two-way wireless range — 868 MHz Tri-X RF with AES-128 encryption, anti-jamming and signal-supervision across the full hub ecosystem. EN 50131 Grade 2 system support, Hik-Connect mobile app, Hik-ProConnect installer cloud and SIA-DC09 / Contact-ID ARC reporting.

Key Features

• 64 wireless zones
• 16 partitions, 32 users, 32 RFID tags supported
• Communications: Wi-Fi 2.4 GHz, Gigabit Ethernet LAN, Single SIM GPRS / 2G
• 868 MHz Tri-X two-way RF — AES-128 encryption, 1.6 km free-air range
• Hik-Connect mobile app (iOS / Android) for remote arm, disarm, push events
• Built-in 12 h battery backup
• SIA-DC09 / Contact-ID ARC reporting + dual-path for grade-2 compliance
• EN 50131 Grade 2 certified
• Hosted on Hikvision Hik-Proconnect cloud for installer remote programming
• Voice prompts + LED status indicators
• Hot-swap PCB design for fast service swap-outs
• CE / UKCA / RED approved

Note: AX PRO is a wireless intruder-alarm platform — pair the hub with the relevant wireless detectors, keypads, sirens and accessories from the AX PRO range to build out a graded EN 50131 system. Hubs include built-in battery backup for mains-fail resilience.
