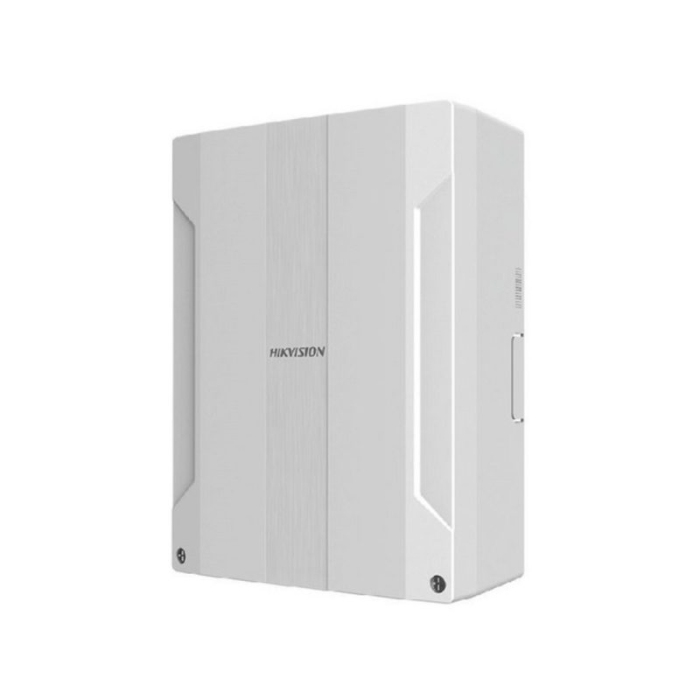

Hikvision Ax Pro DS-PWA96-M2H-WE Wireless 96 Zones Hybrid Alarm Control Panel

The Hikvision AX PRO DS-PWA96-M2H-WE is a wireless alarm control hub — Hybrid M2H 96-zone hub — 8 onboard wired inputs plus full wireless device support.

Part of the Hikvision AX PRO two-way wireless range — 868 MHz Tri-X RF with AES-128 encryption, anti-jamming and signal-supervision across the full hub ecosystem. EN 50131 Grade 2 system support, Hik-Connect mobile app, Hik-ProConnect installer cloud and SIA-DC09 / Contact-ID ARC reporting.

Key Features

• 96 wireless zones + 8 onboard wired inputs
• 32 partitions, 50 users, 50 RFID tags supported
• Communications: Wi-Fi 2.4 GHz, Gigabit Ethernet LAN, Dual SIM 3G / 4G LTE
• 868 MHz Tri-X two-way RF — AES-128 encryption, 1.6 km free-air range
• Hik-Connect mobile app (iOS / Android) for remote arm, disarm, push events
• Built-in 12 h battery backup
• SIA-DC09 / Contact-ID ARC reporting + dual-path for grade-2 compliance
• EN 50131 Grade 2 certified
• Hosted on Hikvision Hik-Proconnect cloud for installer remote programming
• Voice prompts + LED status indicators
• Hot-swap PCB design for fast service swap-outs
• CE / UKCA / RED approved

Note: AX PRO is a wireless intruder-alarm platform — pair the hub with the relevant wireless detectors, keypads, sirens and accessories from the AX PRO range to build out a graded EN 50131 system. Hubs include built-in battery backup for mains-fail resilience.
