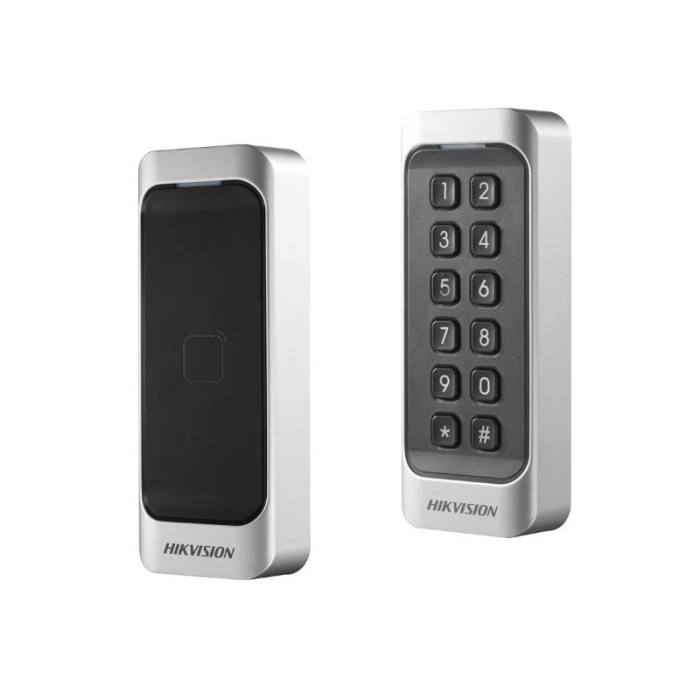

Hikvision DS-K1107MK Mifare Card Reader with Keypad

The Hikvision DS-K1107MK is a slim mullion-mount Mifare card reader with an integrated 12-key keypad — supporting card, PIN or card-plus-PIN authentication for access control doors.

Operating at 13.56 MHz to the ISO 14443-A standard, it connects to Hikvision and third-party controllers over RS-485 or Wiegand, selectable by DIP switch, and includes a tamper alarm and buzzer / LED status feedback.

• 13.56 MHz Mifare card reader, ISO 14443-A compliant
• Integrated 12-key keypad (0–9, *, #) for PIN entry
• RS-485 or Wiegand output, selectable by DIP switch
• Reading range up to 50 mm; 32-bit processor
• Tamper alarm, buzzer and LED status indication
• Online upgrade function
• Slim mullion form factor; 12 VDC, ≤ 2 W power draw
• Wide operating range: -20 °C to +65 °C

A neat, reliable reader for new installs and reader upgrades on Hikvision access control systems. See the accessories tab for compatible controllers, cards and exit buttons.
