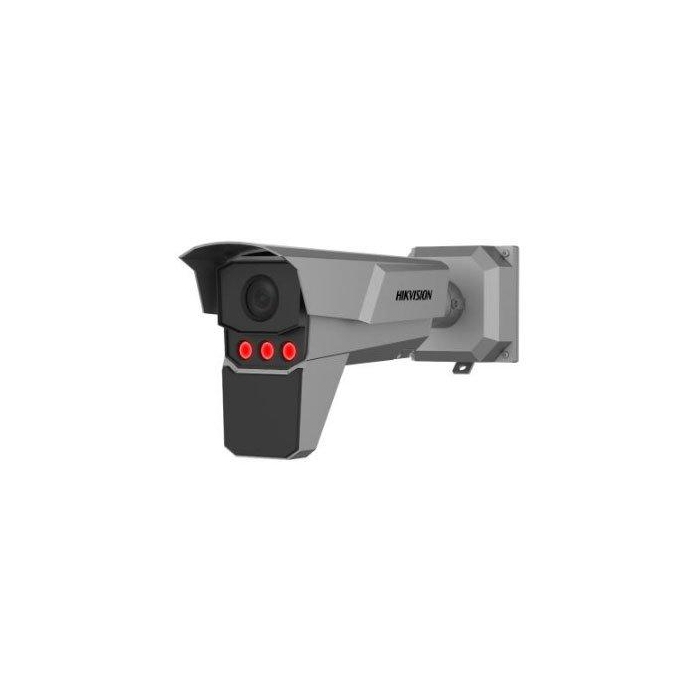

Hikvision iDS-TCM403-GIR/POE/0832 Radar-Assisted Smart Monitoring ANPR Camera

The Hikvision iDS-TCM403-GIR/POE/0832 is a dedicated traffic ANPR camera with 24 GHz millimetre-wave radar for vehicle detection and triggering. 2 MP (1920 x 1080) sensor with 8 mm - 32 mm motorised varifocal lens, supplementary IR + light-compensation flash for night plate capture, on-camera Hikvision plate-recognition algorithm (>=99.5% (optimal conditions) accuracy), and trigger-relay I/O for direct barrier control. Built for tolling, congestion-charge boundaries, traffic enforcement and managed-lane monitoring.

On-camera plate recognition with >=99.5% (optimal conditions) accuracy, 100,000 plates (black/white list) on-device, and selectable uk / eu / north american / row plate format libraries. up to 200 km/h vehicle capture speed with automatic plate-region detection. H.265+ compression for efficient storage, ONVIF Profile S/G/T conformant, compatible with Hik-Connect, Hik-Central, iVMS-4200 and ANPR-aware third-party VMS / tolling platforms over standard plate-event push (HTTP / TCP).

Key Features

• 2 MP (1920 x 1080) resolution
• 8 mm - 32 mm motorised varifocal lens (auto-focus)
• 50 m IR range
• F1.4 (motorised VF) super-aperture for low-light plate capture
• 1/1.8″ Progressive Scan CMOS sensor
• 140 dB true WDR — handles back-lit barriers and tunnel mouths
• 24 GHz millimetre-wave radar — vehicle detection and trigger
• Supplementary IR + light-compensation flash for night capture
• On-camera ANPR — >=99.5% (optimal conditions) plate recognition
• Capture speed: up to 200 km/h
• Capture distance: up to 50 m
• Plate library: 100,000 plates (black/white list)
• Plate regions: UK, EU, North America, ROW (user-selectable)
• Audio: 1-ch in / 1-ch out
• Alarm I/O: 4 in / 2 out (incl. barrier-control trigger relays) (trigger-relay output for barrier control)
• RS-485: 1 x RS-485 (configurable, for barrier / signal interface)
• Edge storage: microSD slot up to 256 GB
• H.265+ / H.265 / H.264+ / H.264 / MJPEG compression
• IP67 weatherproof, IK10 impact rating
• Built-in heater (cold-weather operation)
• Power: PoE+ 802.3at (~30 W max with radar)
• ONVIF Profile S/G/T, Hik-Connect P2P, Hik-Central, iVMS-4200

Note: the iDS-TCM403 family is Hikvision's dedicated traffic ANPR tier — significantly larger plate library (100,000 vs 10,000), higher accuracy ceiling and supplementary light compensation for retro-reflective UK plates. Suited to tolling, congestion-charge boundaries and managed-lane enforcement. The GIR radar variant adds independent vehicle detection — useful when image-based triggering is unreliable (heavy rain, fog, fast-moving traffic at night).
