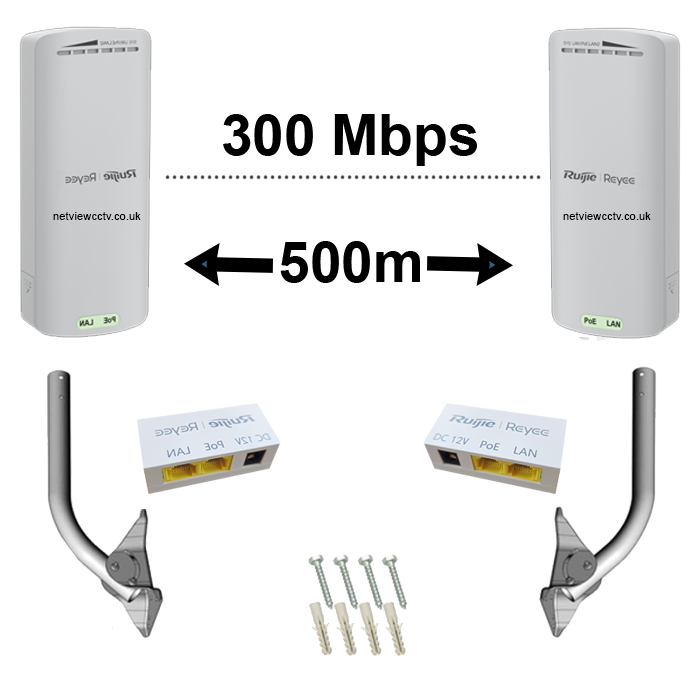

Ruijie RG-EST100-E Wireless Bridge Kit (x2) 2.4GHz 300Mbps Dual-Stream 500m P2P Wireless Bridge
Ruiji RG-EST100-E Wireless Bridge Kit (x2) 2.4GHz 300Mbps Dual-Stream 500m P2P Wireless Bridge
Optional Universal Arm Bracket are not included but can be purchased HERE if required
The Ruijie RRG-EST100-E Wireless bridge kit is designed for short distance PTP adding a unique value for CCTV scenario's.It offers stable 500m data transmission signal and is highly reliable.
CCTV Cameras throughput guide :
4MP : 6 cameras @100m / 3 cameras @500m
8MP : 3 cameras @100m / 1 camera @500m
- RG-EST100-E can easily transmit data from 500m away in real time
- Factory-free configuration, without complex alignment
- IP55 Weatherproof, -30℃~60℃ guarantee stable operating at outdoor or elevator environment
- Support maximum 10 * 3MP cameras loading at 100m, 5 * 3MP cameras loading at 500m
- Visually Intuitive statistics monitoring on Ruijie cloud, easy maintenance at remotely
Manufacturer Product Listing
RG-EST100-E Wireless Bridge Installation Guide.pdf
RG-EST100-E User Manual
RG-AirMetro - EST Series - Wireless Bridges Configuration Guide
Easy Set-Up : Self-Organizing Networking (SON) eliminates product limitations and realizes auto-discovery, auto-networking, and auto-configuration between routers, switches, and wireless APs without the need for controllers or Internet access. The mobile app allows you to quickly complete device deployment and configuration, remote management, operation and maintenance (O&M) of the entire network, which greatly reduces the investment of device, labour, and time cost during wireless network construction
The Ruiji Reyee bridge points support both web interface management and remote management through life- time-free Ruijie Cloud App and Ruijie Cloud platform. You can view the network status, modify the configuration, and troubleshoot faults easily.
