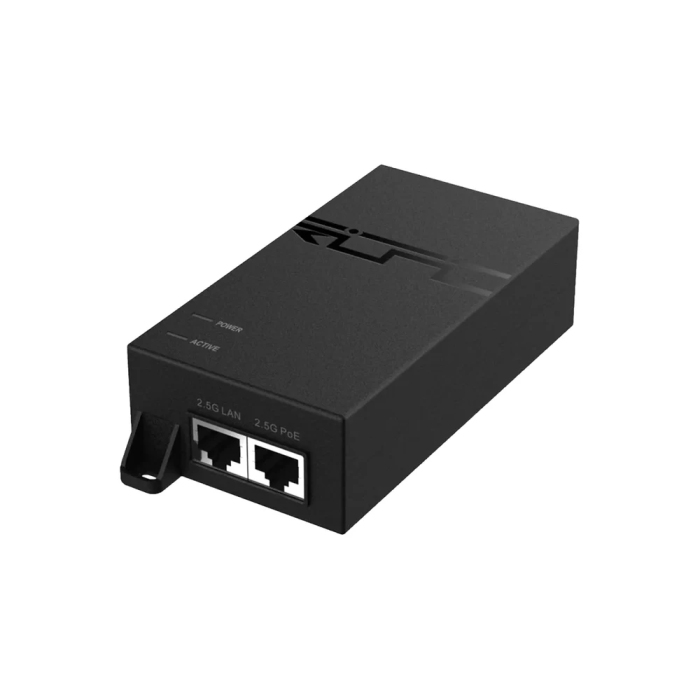

60W Ruijie RG-POE-50-60W-MG 2.5Gb PoE Injector (56V Passive PoE++)
Ruijie Reyee RG-POE-50-60W-MG 2.5GbE PoE++ 60W PoEInjector
The Ruijie Reyee RG-POE-50-60W-MG 2.5-Gigabit Power Over Ethernet PoE++ Injector is engineered to efficiently and reliably power network devices. With an output voltage of 56V DC at 1.08A, this injector ensures a consistent and robust power supply for connected devices. Operating within a rated voltage range of 100-240V AC at 50/60Hz and an input current of 1.5A at 120VAC and 1.2A at 240VAC, the RG-POE-50-60W-MG offers versatile compatibility. Its inrush current remains below 60A peak at 120VAC, guaranteeing a smooth and secure power initiation process, even at 230VAC. The injector optimises power delivery with 4-pair powering configuration on Pins 1, 2, 4, 5 (+) and Pins 3, 6, 7, 8 (-), enhancing network performance
- Power: 60WHi-PoE Injector IEEE802.3bt, IEEE 802.3af and IEEE 802.3at
- Gigabit Ethernet speeds of up to 10/100/1000 Mbps
- 60W power output
- Maximum distance 100m
- Compact design
- Stable and high-performance power supply for access points
- Adapted for a range of environmental temperatures
- Better surge protection range
Compatible with the following products:
RG-RAP2260(H)
RG-RAP6260(H)
RG-RAP6260(H)-D
RG-RAP73HD
