Reyee Wi-Fi 7 APs Explained: RG-RAP72, RG-RAP72Pro and RG-RAP73Pro
For UK CCTV and network installers sizing wireless for a busy site. A Reyee Wi-Fi 7 AP brings 802.11be — Multi-Link Operation, 4K-QAM and, on the tri-band models, the 6 GHz band — to the same cloud-managed range installers already pair with Reyee switches and gateways. This guide walks through every Reyee Wi-Fi 7 access point Netview stocks, from the entry-level RG-RAP72 to the tri-band RG-RAP73Pro, and shows which model fits which higher-density job. Every figure below is taken from Reyee's published datasheets and our own stocked units in Leicester.
At a glance

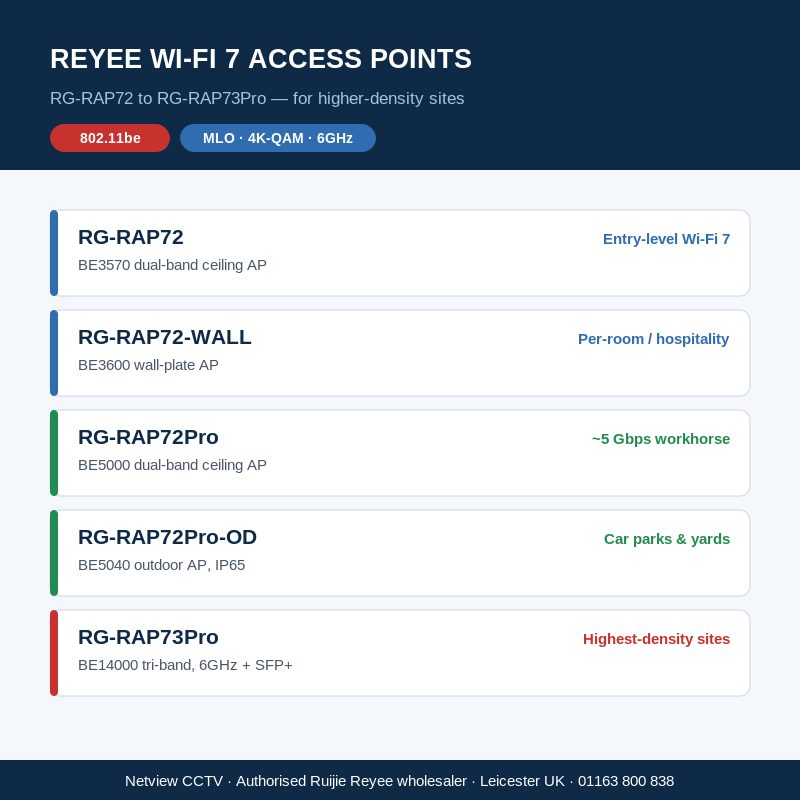

The Reyee Wi-Fi 7 AP range in one paragraph. The RG-RAP72 is the entry-level dual-band BE3570 ceiling AP; the RG-RAP72Pro lifts that to a 5 Gbps dual-band ceiling unit with a 2.5 GbE uplink; the RG-RAP72Pro-OD is the weatherproof indoor/outdoor version of the same silicon; the RG-RAP73Pro is the tri-band BE14000 flagship with a 6 GHz radio and an SFP+ uplink for the highest-density sites; and the RG-RAP72-WALL is a wall-plate BE3600 unit for hotel rooms, offices and anywhere a ceiling mount is not an option. All five are managed free through Reyee Cloud and powered over standard PoE. If you only read one line: ceiling installs start at the RG-RAP72Pro, dense sites move to the RG-RAP73Pro.
What is a Reyee Wi-Fi 7 AP, and why does it matter on a security site?
A Reyee Wi-Fi 7 AP is an 802.11be cloud-managed access point built for the SME and CCTV-adjacent installs Reyee already serves. Wi-Fi 7 is not just a higher headline speed. The three changes that matter on a working site are Multi-Link Operation (MLO), which lets a client use two bands at once for lower latency and better resilience; 4K-QAM, which packs more data into each transmission for roughly a 20% throughput lift over Wi-Fi 6 at the same signal; and — on the tri-band models — the clean 6 GHz band with 320 MHz channels, away from the congestion that builds up on 2.4 and 5 GHz. For an installer that means more wireless devices served reliably from the same number of APs: handheld stock scanners, wireless door entry tablets, guest Wi-Fi, and the growing number of Wi-Fi cameras and intercoms that share the network with a wired CCTV backbone.
Reyee's Wi-Fi 7 line slots straight into the kit you already deploy. The APs onboard to Reyee RG-EG cloud gateways and draw PoE from Reyee PoE switches, all under one Reyee Cloud account — no per-AP licensing.

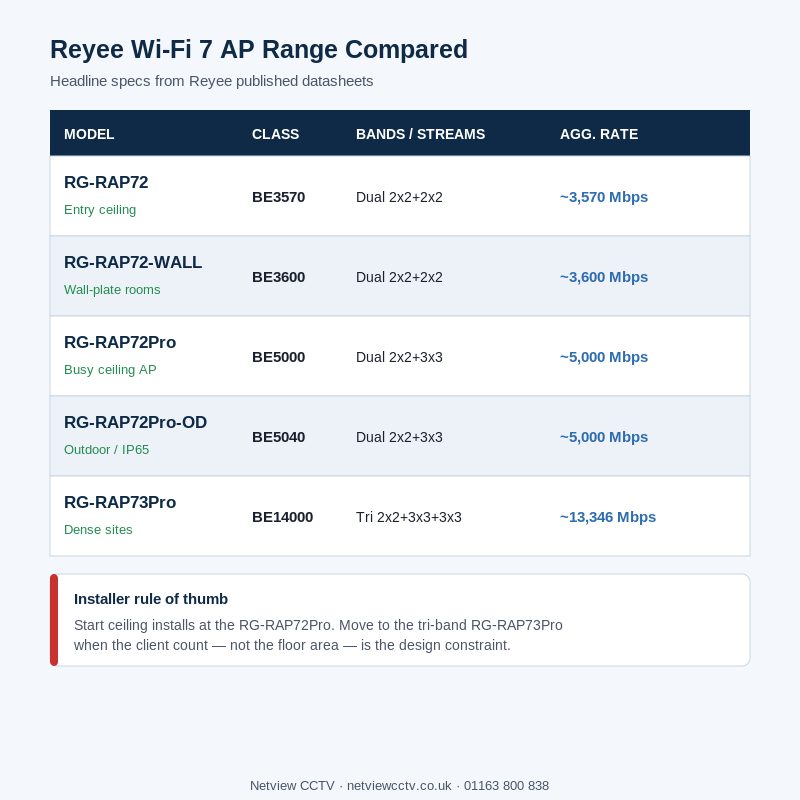

The Reyee Wi-Fi 7 access point range at a glance
Netview stocks five Reyee Wi-Fi 7 access points covering entry-level, high-throughput, outdoor and wall-mount roles. The table below pulls the headline specs from Reyee's datasheets so you can size by job in one read.
| Model | Class | Bands / streams | Aggregate rate | Uplink / power | Best for |
|---|---|---|---|---|---|
| RG-RAP72 | BE3570 | Dual-band, 2×2 + 2×2 | ~3,570 Mbps | 1 × 2.5 GbE, PoE/PoE+ | Entry-level ceiling AP |
| RG-RAP72-WALL | BE3600 | Dual-band, 2×2 + 2×2 | ~3,600 Mbps | Gigabit LAN, PoE/PoE+ | Wall-plate rooms / offices |
| RG-RAP72Pro | BE5000 | Dual-band, 2×2 + 3×3 | ~5,000 Mbps | 1 × 2.5 GbE + 1 × GbE, PoE/PoE+ | High-throughput ceiling AP |
| RG-RAP72Pro-OD | BE5040 | Dual-band, 2×2 + 3×3 | ~5,000 Mbps | 1 × 2.5 GbE, PoE/PoE+, IP65 | Outdoor / covered areas |
| RG-RAP73Pro | BE14000 | Tri-band, 2×2 + 3×3 + 3×3 | ~13,346 Mbps | 1 × 2.5 GbE + 1 × SFP+, PoE+ (802.3bt) | Highest-density sites |
RG-RAP72: the entry-level Wi-Fi 7 ceiling AP
The RG-RAP72 is the cheapest way to put genuine Wi-Fi 7 on a ceiling. It is a dual-band BE3570 access point with a 2×2 radio on each of 2.4 and 5 GHz, an aggregate rate of around 3,570 Mbps and a 2.5 GbE uplink port so the wired backhaul is never the bottleneck (Reyee RG-RAP72 datasheet). Reyee rates coverage at roughly 140 m² per unit, and it runs the same WIO 3.0 AI radio optimisation and Reyee Mesh as the rest of the line. For a small office, a retail unit or a flat refurbishment where the brief is “decent reliable Wi-Fi, future-proofed”, the RG-RAP72 is the sensible floor — and at well under the price of most Wi-Fi 6 competitors it makes Wi-Fi 7 the default rather than the upgrade.
RG-RAP72Pro: the 5 Gbps dual-band workhorse
The RG-RAP72Pro is the model most ceiling installs should start at. It steps the 5 GHz radio up to 3×3 — five spatial streams in total — for an aggregate rate of around 5 Gbps, and adds a second wired port (1 × 2.5 GbE plus 1 × Gigabit) for daisy-chaining or a wired client at the AP (Reyee RG-RAP72Pro datasheet). It carries the full Wi-Fi 7 feature set — MLO, 4K-QAM, OFDMA and beamforming — and Reyee quotes capacity for 500-plus associated clients with a recommended concurrent load of around 100-110 devices. That makes the RG-RAP72Pro the right call for a busy open-plan office, a gym, a café with heavy guest Wi-Fi, or a small school block: the extra 5 GHz stream is what holds the experience together once the device count climbs.
RG-RAP72Pro-OD: Wi-Fi 7 for car parks, yards and covered outdoor areas
The RG-RAP72Pro-OD is the same BE5040 platform in a weatherproof shell for outdoor and semi-covered installs. It delivers the same ~5 Gbps dual-band performance and 2.5 GbE uplink as the indoor Pro, but in an IP65-rated enclosure rated for wall or pole mounting (Reyee RG-RAP72Pro-OD datasheet). Built-in omnidirectional antennas push usable coverage out to around 150 m on 5 GHz. For a CCTV installer this is the natural pairing for a site that already has cameras on the perimeter — car parks, builders' yards, courtyards, covered loading bays and outdoor seating — where you want client Wi-Fi or a wireless link without running a separate indoor AP behind a window. Note that Reyee's datasheet specifies an IP65 rating; if a brief calls for full submersion-grade sealing, confirm against the spec sheet before you quote.
RG-RAP73Pro: tri-band BE14000 for the highest-density sites
The RG-RAP73Pro is the flagship — a tri-band BE14000 AP that adds the 6 GHz band for sites where 2.4 and 5 GHz alone cannot keep up. It runs eight spatial streams across three radios (2×2 on 2.4 GHz, 3×3 on 5 GHz, 3×3 on 6 GHz) for an aggregate rate of around 13,346 Mbps, with 320 MHz channels available on the clean 6 GHz band (Reyee RG-RAP73Pro datasheet). Reyee rates it for up to 600 associated clients with around 200 recommended for concurrent internet access. Crucially for an installer, it carries both a 2.5 GbE RJ45 port and an SFP+ port — so on a large site you can run fibre straight back to the comms room and never starve the AP of backhaul. Specify the RG-RAP73Pro for conference venues, large retail floors, lecture halls, busy hospitality and any brief where the client count is the design constraint rather than the coverage area. It needs 802.3bt (PoE++) power, so size the switch accordingly.
RG-RAP72-WALL: Wi-Fi 7 where you can't mount to a ceiling
The RG-RAP72-WALL is a wall-plate BE3600 access point for rooms, corridors and desks where a ceiling mount is impractical. It is a dual-band Wi-Fi 7 unit on a flush wall plate with a Gigabit LAN port, designed to sit at socket height in a hotel room, a student flat, an office partition or a care-home bedroom. The wall-plate form factor solves the problem ceiling APs create in cellular buildings: every room gets its own AP and its own coverage cell, rather than one ceiling unit fighting through three plasterboard walls. For hospitality and multi-dwelling refurbishments, a per-room RG-RAP72-WALL is usually both cheaper to cable and better performing than trying to flood the building from the corridor.
Wi-Fi 7 vs Wi-Fi 6: should you still spec the RG-RAP2260?
Wi-Fi 6 is still a valid choice on budget jobs, but the price gap has closed enough that Wi-Fi 7 is now the sensible default. Reyee's Wi-Fi 6 line — the RG-RAP2260 AX3000 ceiling AP and the higher-capacity RG-RAP2260(H) AX6000 with dual 2.5 GbE — remains in stock and is perfectly capable for a straightforward office or retail install. But the RG-RAP72 lands at a similar price point to the RG-RAP2260 while adding MLO, 4K-QAM and a clearer upgrade path. The honest rule of thumb: if you are quoting a new install today, spec Wi-Fi 7 unless the customer is matching existing Wi-Fi 6 hardware; reserve the RG-RAP2260 range for like-for-like replacements and tight budgets where every pound counts.
Powering and switching Reyee Wi-Fi 7 APs
Every Reyee Wi-Fi 7 AP is PoE-powered, but the dual-band and tri-band models have different power classes — size the switch to match. The RG-RAP72, RG-RAP72-WALL, RG-RAP72Pro and RG-RAP72Pro-OD all run on standard PoE/PoE+ (802.3af/at). The RG-RAP73Pro needs 802.3bt (PoE++) because of its third radio and SFP+ port. For a multi-AP site, a cloud-managed Reyee PoE switch keeps everything on one dashboard — the RG-ES220GS-P 20-port handles a typical small-site mix of APs and cameras, while the RG-NBS3200-24GT4XS-P 24-port L2+ switch adds 10 G SFP+ uplinks and the PoE budget for a row of RG-RAP73Pro units. Our Reyee PoE switch sizing guide works through the budget maths for mixed AP-and-camera sites; remember to count the AP draw alongside the cameras when you total the PoE budget.
Managing the range with Reyee Cloud
All five Wi-Fi 7 APs are managed free through Reyee Cloud, the same platform that runs Reyee switches and gateways. There is no per-AP licence and no controller appliance to buy. From one Reyee Cloud account an installer can stage an entire site — APs, the RG-EG105G-V3 gateway and the PoE switches — push SSIDs and VLANs, run the WIO AI radio optimiser, and hand the customer a clean app for guest Wi-Fi vouchers. For multi-site installers it means one login across every job, with remote firmware updates and alerts without a site visit. That single-pane management is the real reason the Reyee range pairs so well with a CCTV business: you are already on site for the cameras, and the network falls under the same dashboard.
FAQ — installer questions about Reyee Wi-Fi 7 APs

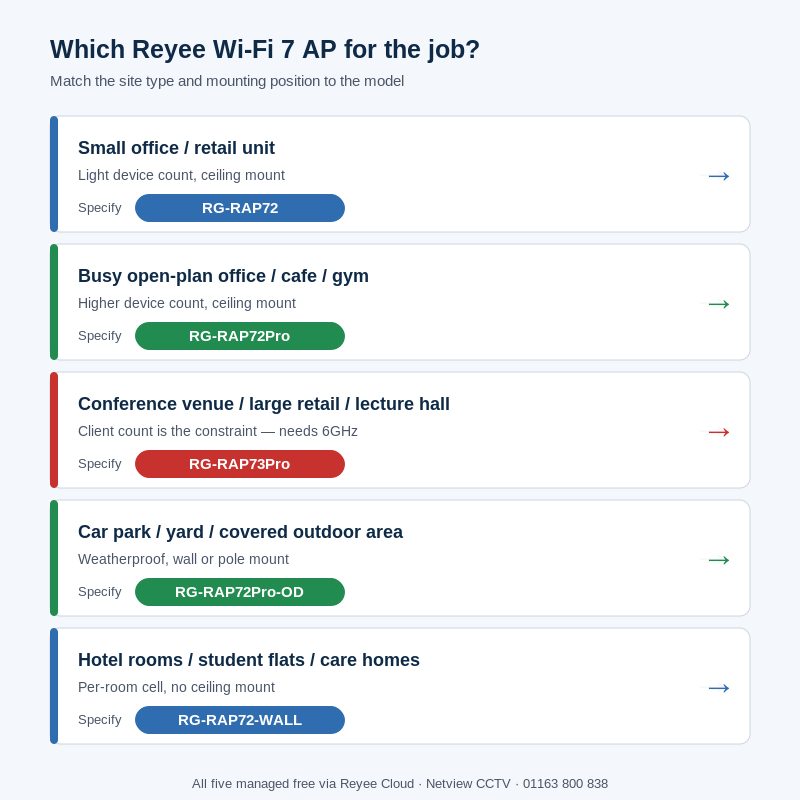

Which Reyee Wi-Fi 7 AP should I start with for a standard office?
The RG-RAP72Pro. The entry-level RG-RAP72 is fine for light use, but the RG-RAP72Pro's 3×3 5 GHz radio gives you the headroom to cope as device counts grow, and the price difference is small. Move up to the RG-RAP73Pro only when the client count, not the floor area, is the design constraint.
Do I need the 6 GHz band?
Only the tri-band RG-RAP73Pro has a 6 GHz radio. It is worth specifying on genuinely dense sites — conference venues, large retail, lecture halls — where 2.4 and 5 GHz are congested. For most offices, shops and homes the dual-band RG-RAP72Pro is the right tool and 6 GHz would sit largely unused.
Can I mix Reyee Wi-Fi 7 and Wi-Fi 6 APs on the same site?
Yes. Reyee Cloud manages mixed-generation APs under one account, so you can add RG-RAP72 or RG-RAP72Pro units to a site already running RG-RAP2260 hardware. Clients connect at whatever generation each AP supports; there is no downside to phasing Wi-Fi 7 in over time.
What PoE do the Reyee Wi-Fi 7 APs need?
The RG-RAP72, RG-RAP72-WALL, RG-RAP72Pro and RG-RAP72Pro-OD all run on standard PoE/PoE+ (802.3af/at). The RG-RAP73Pro needs 802.3bt (PoE++), so check your switch supports it before you quote that model.
Is the RG-RAP72Pro-OD fully waterproof?
Reyee's datasheet rates the RG-RAP72Pro-OD at IP65 — protected against dust and low-pressure water jets, suitable for wall or pole mounting in exposed positions. It is built for outdoor and covered-outdoor use; for any brief that specifies a higher sealing grade, confirm against the current datasheet first.
Do these APs work with a Reyee gateway and switches as one system?
Yes — that is the whole point of the range. The Wi-Fi 7 APs, Reyee PoE switches and the RG-EG cloud gateways all sit under one Reyee Cloud account with no extra licensing, which is why the line pairs neatly with a CCTV install you are already on site for.
Spec'ing Wi-Fi 7 into your next install? Same-day dispatch from Leicester.
Trade pricing, stock on the shelf and free technical support on the full Reyee Wi-Fi 7 range.
Call 01163 800 838 or browse the brands we stock.
For the rest of the Reyee networking range, see our Reyee Wi-Fi 6 AP vs UniFi comparison, the Reyee PoE switch sizing guide and the Reyee RG-EG gateway guide for CCTV installs.
Published 14 May 2026 by Netview CCTV — Authorised Ruijie Reyee, Hikvision and HiLook wholesaler, Leicester UK.
