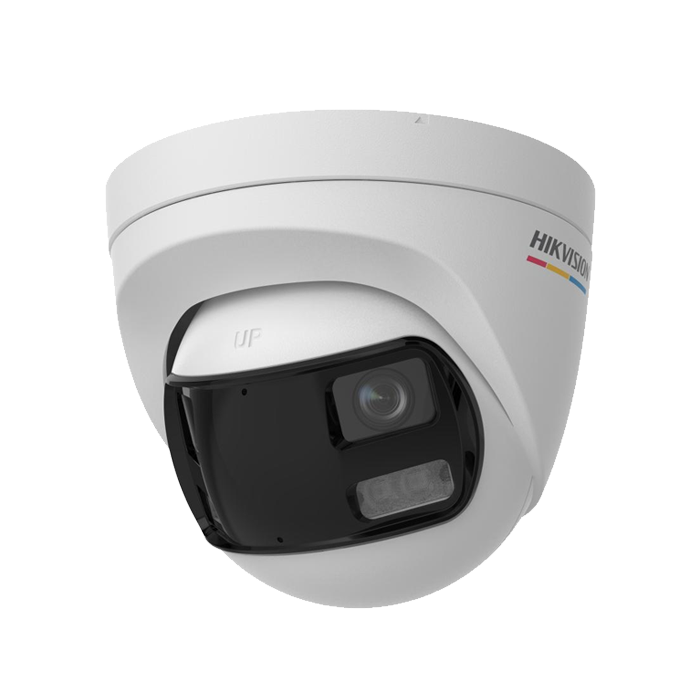

Hikvision DS-2CE72KF3TP-DLS 3K 180° Dual Lens Panoramic Smart Hybrid Camera with Audio
The Hikvision DS-2CE72KF3TP-DLS is a 3K (5 MP) dual-lens panoramic turret — twin 2.8 mm sensors stitch a 180° panoramic view down a single coax run with PoCWhat is Hikvision PoC power. Built-in microphone and audio-output give 2-way audio over coax (AoCWhat is Hikvision AOC), 40 m Smart IR keeps night imaging clean, IP67 rated body, and 5-in-1 hybrid coax output drops into any existing DVR or coax cable run.
Twin 2.8 mm sensors stitched in-camera to a 180° panoramic view — one camera covers what would normally take two. Built-in microphone and audio-output enable 2-way audio over coax (AoCWhat is Hikvision AOC) when paired with a compatible Turbo HD AcusenseHikvision AcuSense NVR Range 2026: Sizing Guide DVR — no separate audio cable run. Power-over-Coax (PoCWhat is Hikvision PoC) — video, control and power all ride one coax cable from a PoCWhat is Hikvision PoC-capable DVR (no separate 12 VDC supply). 5-in-1 hybrid coax video (HD-TVI / AHD / HDCVI / CVBS) auto-detects on connection — the camera works with virtually any UK analogue DVR in stock with installers today.
Key Features
- 3K (5 MP) resolution (2960 x 1665 per lens)
- Dual 2.8 mm fixed lenses — 180° panoramic stitched view
- 40 m IR range with Smart IR
- 5-in-1 hybrid coax video — HD-TVI / AHD / HDCVI / CVBS auto-detect
- Drops into any existing UK analogue DVR or coax cable run (BNC)
- Built-in microphone + audio-output — 2-way audio over coax (AoCWhat is Hikvision AOC)
- Power-over-Coax (PoCWhat is Hikvision PoC) — video + power on a single coax cable
- Digital WDR + 3D-DNR for clean low-light / back-lit scenes
- IP67 weatherproof
- Operating temperature: -40 °C to 60 °C
- Power: 12 VDC or PoCWhat is Hikvision PoC
- CE / UKCA / RoHS approved
Note: Dual-lens panoramic variants stitch two 2.8 mm sensor feeds in-camera to a 180° panoramic view — output is a single coax stream into any standard Turbo HD DVR channel. Pair with a PoCWhat is Hikvision PoC-capable Turbo HD DVR for single-coax video + power.
