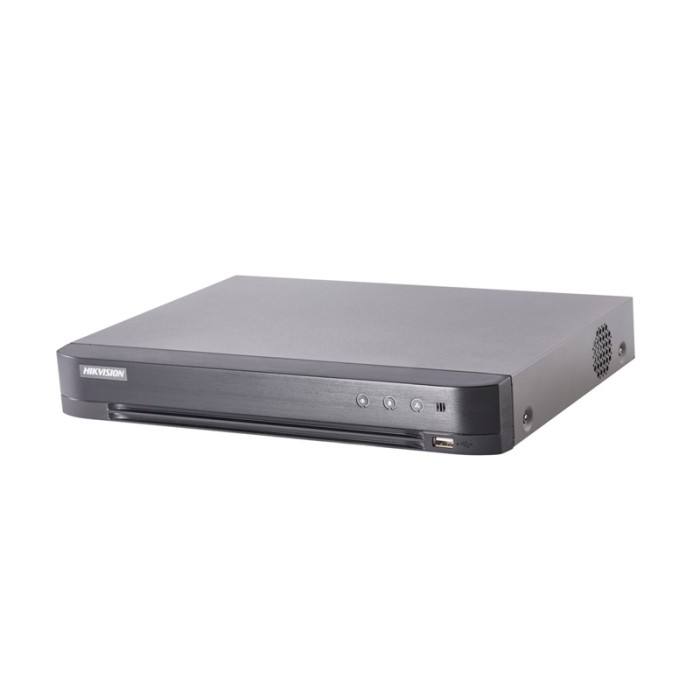

Hikvision iDS-7204HUHI-M1/XT 4 Channel 3K/8MP Lite Acusense DVR

The Hikvision iDS-7204HUHI-M1/XT is a 4-channel Pro Series AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide DVR — the 8 MP (3K Lite) hybrid recorder with on-device human/vehicle classification. 5-in-1 hybrid input: HD-TVI, AHD, HDCVI, CVBS analogue and IP. 1 × SATA bay (up to 10 TB), H.265 Pro+ compression, dual 4K HDMI + VGA output, 1 Gigabit Ethernet. Camera-side and recorder-side AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide supported.

Up to 4-channel human / vehicle detection runs on-DVR (advanced AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide mode), with perimeter protection, line crossing, intrusion and region entrance/exit events all classifiable by target type. 4 alarm inputs + 1 alarm output for siren, strobe and access-control integration. Supports Hik-Connect P2P, ONVIF, Hik-Central and iVMS-4200.

Key Features

• 4-channel BNC analogue input — HD-TVI / AHD / HDCVI / CVBS auto-detect (5-in-1 hybrid)
• Up to 8 MP (3K Lite) HD-TVI input recording per channel
• Up to 4-channel on-DVR AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide human/vehicle classification (advanced mode)
• 1 × SATA 3.5″ HDD bay, up to 10 TB capacity
• H.265 Pro+ / H.265 / H.264+ / H.264 compression — up to 75% storage saving vs H.264
• Dual output: 1 × HDMI (4K @ 30 Hz) + 1 × VGA (1080p @ 60 Hz) — independent or simultaneous
• 1 × RJ-45 10/100/1000 Mbps self-adaptive Gigabit Ethernet
• 4 alarm inputs / 1 alarm output, 1 × RS-485 keyboard / PTZ control
• 2 × USB 2.0 + 1 × USB 3.0; ONVIF, Hik-Connect P2P, Hik-Central, iVMS-4200
• Compact 1U desktop chassis 320 × 240 × 48 mm, ≤ 1.16 kg (without HDD), 12 VDC PSU

Note: Pro Series AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide DVRs add on-recorder human/vehicle classification — reduces false alarms from animals, foliage and weather. For PoCWhat is Hikvision PoC (Power-over-Coax) variants, see the matching /PXT model. For Ultra-tier (4 HDD bays), see the iDS-73xx M4/S range.
